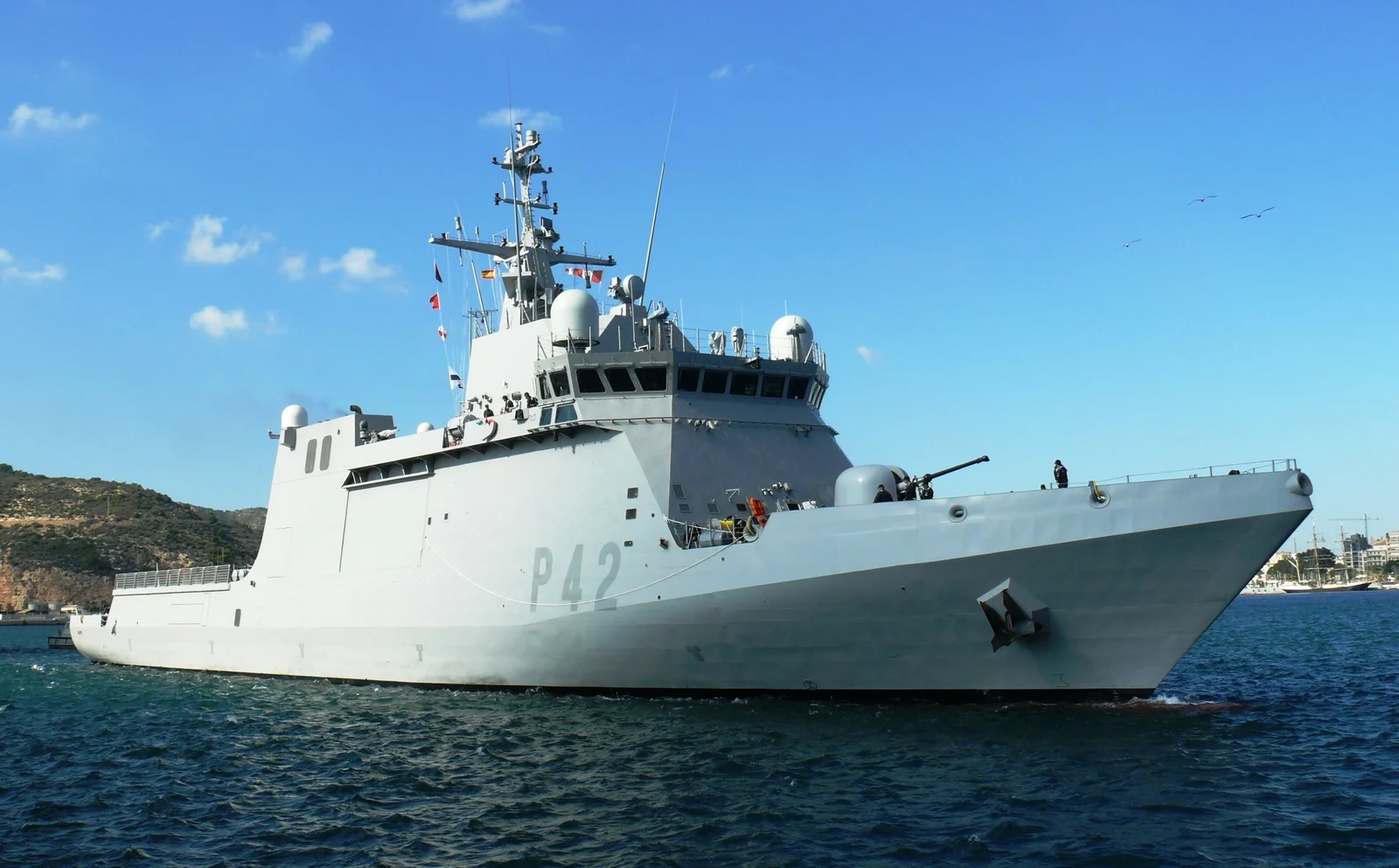

BAM Rayo Maritime Action Ship (Spain) wikipedia

6. BAM Maritime Action Ship (Spain) – $116 million

The BAM (Buque de Acción Marítima) ships are new modular Offshore Patrol Vessels of the Spanish Navy adapted to different purposes from a common base, manufactured by Navantia. The BAMs combine high performance with mission versatility, a high commonality with other ships operated by the Spanish navy.

Type: Offshore Patrol Vessel (OPV)
Displacement: 2,670 t (full load)[citation needed] Length: 93.9 m (308 ft)
Beam: 14.2 m (47 ft)
Draft: 4.2 m (14 ft)
Propulsion: 2 diesel engines, 4 groups diesel generators, 2 electric motors propellers
1 Emergency generator, Located 2 cross bow thruster
Speed: 20 knots (37 km/h; 23 mph)+
Range: 3,500 mi (3,000 nmi; 5,600 km) at 15 knots (28 km/h; 17 mph)
Complement: 46 crew and 30 forces[citation needed] Armament: 1 cannon 76/62 mm gun,  2 25 mm Automatic Mountings, 2 × 12.7 mm machine guns
Aircraft carried: 1 × NH-90 hellicopter
Show full specs
Show less

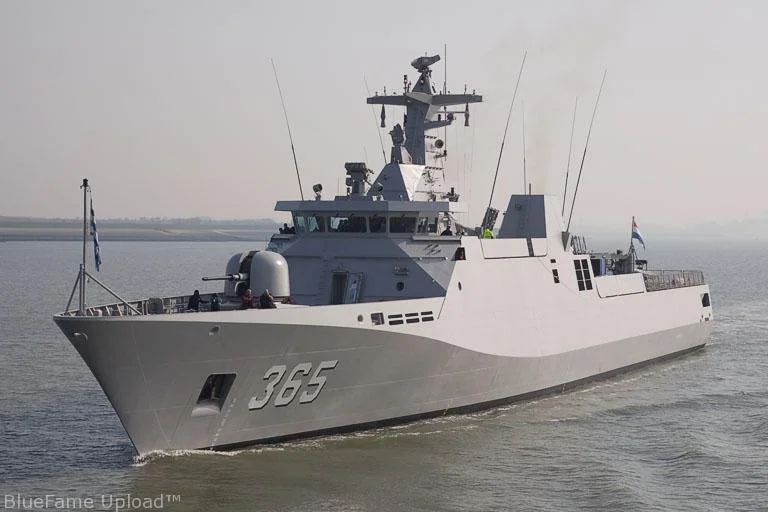

Sigma

7. Sigma (Indonesian/Moroccan) – $222 million

The Sigma class corvette is a Dutch-built Navy vessel. It is a corvette or frigate with ocean capabilities.

Type: Corvette or Frigate
Displacement: 1,692 tons
Length: 90.71 meters (297.62 feet)
Beam: 13.02 meters (42.72 feet)
Draft: 3.60 meters (11.81 feet)
Propulsion: 2 x SEMT Pielstick 20PA6B STC rated at 8910 kW each driving a lightweight Geislinger coupling combination BE 72/20/125N + BF 110/50/2H (steel – composite coupling combination)
4 x Caterpillar 3406C TA generator rated at 350 kW each
1 x Caterpillar 3304B emergency generator rated at 105 kW
2 x shaft with Rolls Royce Kamewa 5 bladed CP propeller
2 x Renk ASL94 single step reduction gear[1] with passive roll stabilization
Speed: Maximum: 28 knots (52 km/h)
Cruising: 18 knots (33 km/h)
Economy: 14 knots (26 km/h)
Range: At cruising speed of 18 knots (33 km/h): 3,600 Nm (6,700 km)
At economy speed of 14 knots (26 km/h): 4,800 Nm (8,900 km)
Crews: 20, up to 80
Sensors and processing systems: Combat System: Thales Group TACTICOS[2] with 4 x Multifunction Operator Console Mk 3 2H
Search radar: MW08 3D multibeam surveillance radar
IFF: Thales TSB 2525 Mk XA (integrated with MW08)
Navigation radar: Sperry Marine BridgeMasterE ARPA radar
Fire control radar: LIROD Mk 2 tracking radar
Data Link: LINK Y Mk 2 datalink system
Sonar: Thales UMS 4132 Kingklip medium frequency active/passive ASW hull mounted sonar
Internal Communications: Thales Communication’s Fibre Optical COmmunications Network (FOCON) or EID’s ICCS where on-board users have access to internal and/or external communication channels and integrated remote control of communications equipment
Satellite Comms: Nera F series
Navigation System: Raytheon Anschutz integrated navigation
Integrated Platform Management System: Imtech UniMACs 3000 Integrated Bridge System[3] Electronic warfare and decoys: ESM: Thales DR3000
ECM: Racal Scorpion 2L
Decoy: TERMA SKWS, DLT-12T 130mm decoy launchers, port, starboard
Armament: Guns: 1 x Oto Melara 76 mm (A position)
2 x 20 mm Denel GI-2 (Licensed copy of GIAT M693/F2) (B position)
Anti-air missile: 2 x quad (8) MBDA Mistral TETRAL, forward & aft
Anti-surface missile: 4 x MBDA Exocet MM40 Block II
Torpedoes: 2 x triple B515 launchers for EuroTorp 3A 244S Mode II/MU 90
Aviation facilities: landing pad, optional hangar
Show full specs
Show less
